可對樣品同時進行溫度、濕度、振動、沖擊以及加速度等氣象環境應力及物理環境應力測試。

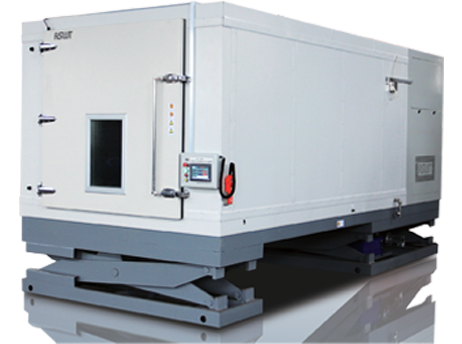

ZS can simultaneously test the temperature, humidity, vibration, impact, acceleration and other meteorological environmental stress and physical stress of samples.
型號 Model | ZS-0350 | ZS-0600 | ZS-1000 | ZS-1600 | |||
工作室容積(升)Test Space Volume(L) | 343 | 576 | 1000 | 1584 | |||
工作室尺寸 Test Space Dimensions |
W | 630 | 800 | 1000 | 1200 | ||
D | 700 | 800 | 1000 | 1200 | |||
H | 780 | 900 | 1000 | 1100 | |||
溫度范圍 Temp. Range | -70℃~+180℃ | ||||||
溫度波動范圍 Temp. Fluctuation | ≤±0.5℃ | ||||||
升溫速率 Heating Rate | 1.0~3.0℃/min (或根據用戶要求/or according to the customer's requirement) | ||||||
降溫速率 Cooling Rate | 0.7~1.2℃/min (或根據用戶要求/or according to the customer's requirement) | ||||||
濕度范圍 Humidity R ange | 10%RH~98%RH |
備注
1.設備性能在環境溫度+25℃,相對濕度65%RH下,無負載所測。The performance vulues refer to environmental +25℃ 65%RH,no loading.
2.外形尺寸未包含局部突出部分。The ledge is not included in the overall dimensions.
