采用模擬全陽光光譜的氙弧燈來再現不同環境下存在的破壞性光波?梢詾榭蒲、產品開發和質量控制提供相應的環境模擬和加速試驗。
除了進行光降解測試以外,氙燈耐氣候試驗箱還可以通過增加濕氣和水噴淋選件模擬室外濕氣對材料的破壞影響。

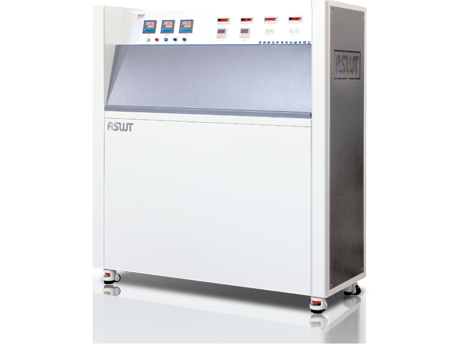

L-SUN reproduces the destructive light wave in different environments with the xenon arc lamp that can stimulate full sun spectrum and can provide corresponding environment stimulation and acceleration tests for scientific research, product development and quality control.
In addition to light degradation test, xenon-lamp weather-resistant test chamber can also stimulate the destructive effects of outdoor humidity on materials by increasing moisture and water spraying options.



工作室尺寸Test Space Dimensions 450×1170×500 (D×W×H)(mm)
外形尺寸 Overall Dimensions 500×1308×1480(D×W×H)(mm)
樣品夾數量 Sample Holder Number 26 pieces
樣品夾尺寸 Sample Holder Size 70W*185H*15D mm
溫度范圍 Temp. Range RT+10~+70℃
溫度波動度 Temp.  Fluctuation ≤±0.5℃
溫度均勻度 Temp. Uniformity ≤2.0℃
燈管中心距離 Distance Between Tubes 66mm
試品與燈光中心距離 Distance Beteewn Sample And Tube 68mm
濕度范圍 Humidity Range 95%~100% RH
濕度誤差 Humidity Diviation +2/-3% RH
波長范圍 Wavelength Region 295~365nm
額定電壓Nominal Voltage AC220V±10%,50Hz
功率 Power 2.5(kW)
重量 Weight (kg) 180(kg)

備注
1.設備性能在環境溫度+25℃,相對濕度65%RH下,無負載所測。The performance vulues refer to environmental +25℃ 65%RH,no loading.
2.外形尺寸未包含局部突出部分。The ledge is not included in the overall dimensions.
