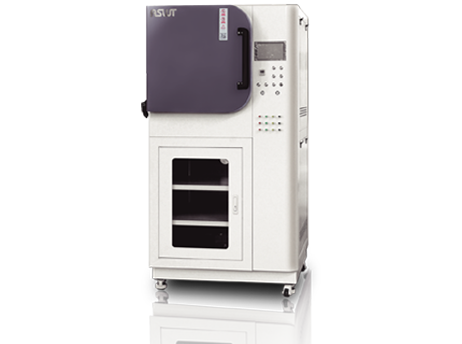

非飽和蒸汽試驗/飽和蒸汽試驗
HAST具有濕氣老化加速性,可大程度縮短試驗在常規條件下的時間。
HAST適用于密封性能的檢測,加速壽命試驗,適用于產品的設計及驗證階段,用于快速暴露產品的缺陷和薄弱環節。
HAST適用于評估儲存在高溫/高濕度環境中的半導體等電子元件、材料的耐久性或因環境引發的失效性。

With high moisture aging and acceleration, the test can be reduced to a maximum of time under normal conditions.
It is suitable for the test of sealing performance and accelerated life test, which is applicable to the design and verification stage of the product, which is used for the quick exposure of defects and weak links of products.
It is applicable to evaluate the durability of semiconductor devices stored in high temperature/high humidity environments.



型號 Model HAST-300-1 HAST-300-2 HAST-450-1 HAST-450-2
工作室容積(升)Test Space Volume (L) 17 17X2 57 57X2
測試區域尺寸 250φ×350 250φ×350(×2) 400φ×450 400φ×450(×2)
外形尺寸
Overall size(mm)
W 760 760 910 910
D 850 850 960 960
H 1500 1500 1780 1780
試驗模式 Test Model 不飽和控制/飽和控制/干濕球控制 Unsaturated / Saturated/Dry - Wet Bulb control
溫度范圍 Temp.Range 100℃~162℃
濕度范圍 Hum.Range 65%RH~100%RH
壓力范圍 Press.Range 0.019~0.393MPa

備注
1.設備性能在環境溫度+25℃,相對濕度65%RH下,無負載所測。The performance vulues refer to environmental +25℃ 65%RH,no loading.
2.外形尺寸未包含局部突出部分。The ledge is not included in the overall dimensions.
